Las Vegas, NV · EV charging infrastructure · Design–build

The hard part isn't the charger.
It's the power behind it.

Chargtek surveys, designs, permits and builds DC fast-charging sites — utility service, switchgear, conduit, foundations, dispensers and commissioning. We keep the trench short with horizontal directional drilling, and we size the ground for the power levels arriving now, not the ones that shipped in 2019.

Request a free site survey Can my site support fast charging?
Where your site lands on the power curve Logarithmic scale · kW delivered per port
7.2kW
Level 2 AC
Overnight · workplace
50kW
Legacy DC
Being retired
150kW
DC fast
Volume tier
350kW
High power
Highway standard
1,000kW
1,000 V class
10–70% in ~5 min
3,750kW
MCS ceiling
Class 8 · transit
  • 3,750 kWMegawatt Charging System ceiling — Class 8, transit, marine
  • 1,000 kW1,000 V architectures — 10–70% in about five minutes
  • 350 kWHigh power — current highway standard
  • 150 kWDC fast — today's volume tier
  • 50 kWLegacy DC — being retired from public networks
  • 7.2 kWLevel 2 AC — overnight, workplace, multifamily
Chargtek design–build scope Level 2 through megawatt
NACS / SAE J3400CCS1 dual-standardISO 15118-20 Plug & Charge OCPP 2.0.1IEC 63379 — MCS1,000 V DC architecture V1G / V2G managed chargingUL 2202 · UL 2594NEC Article 625 ADA accessible charging

What we build

Four site types. One power problem.

Every project comes down to the same question — how much power can this ground carry, and what will it need to carry in seven years. We answer that first, then build backwards from it.

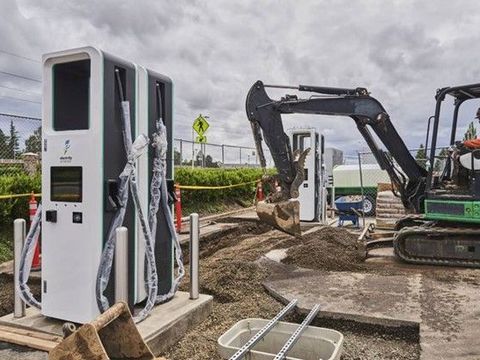

DC fast-charge cabinets on a plaza during construction

Site type 01

Highway fast-charge plazas

150–400 kW pull-through bays, canopy and lighting, ADA access routes, and switchgear pads sized for a second phase you haven't ordered yet.

Bay configs & timelines →

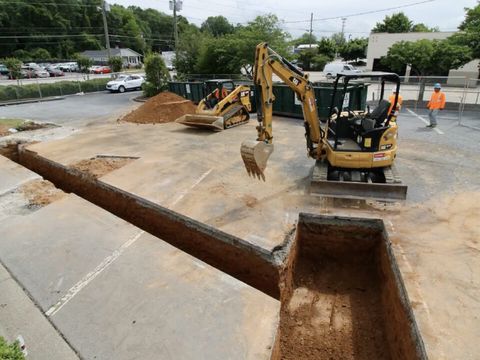

Yard excavation for charging infrastructure at a large lot

Site type 02

Fleet & depot charging

Transit, school bus, last-mile and Class 8 yards. Sequenced charging so you buy service capacity once, plus pathways reserved for megawatt dispensers.

Bay configs & timelines →

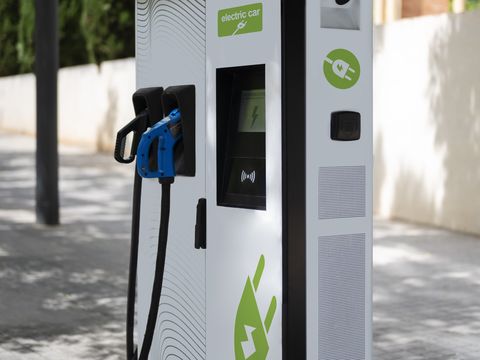

DC fast charger at a landscaped commercial property

Site type 03

Commercial & destination

Retail, hospitality, multifamily and parking structures. Level 2 arrays with a DC anchor, metered for revenue, wired so adding ports later doesn't mean re-trenching.

Bay configs & timelines →
Crew coordinating over construction plans

Site type 04

OEM & dealer networks

Delivery centers, dealer service bays and brand-standard public sites. Repeatable multi-site rollout to a single spec, one point of contact per market.

Bay configs & timelines →

The power path

Six steps from dirt to dispenser.

This is a sequence, not a menu. Skipping the front end is what turns a nine-month project into a two-year one — almost always at the utility interconnection.

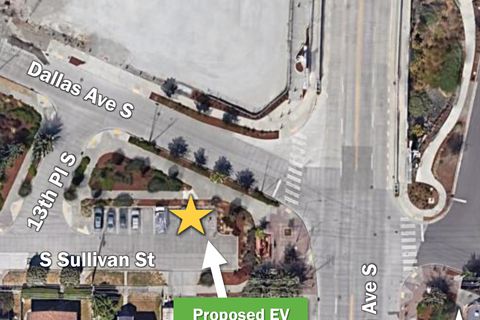

Annotated aerial photo marking a proposed EV charging site

01

Survey & evaluate

Our team walks your location at no cost. Utility capacity, service entrance options, transformer distance, soils, ADA path of travel — and what the site can realistically support today.
Construction drawings and laptop on a site table

02

Plan & design

One-line diagrams, load calculations, civil and foundation design, and stub-ups sized for the next generation of cabinets — not just the ones on this purchase order.
Approved construction permit application

03

Permit & approval

We work directly with cities and utilities — AHJ submittal, make-ready applications, and the interconnection request that gates your whole schedule.

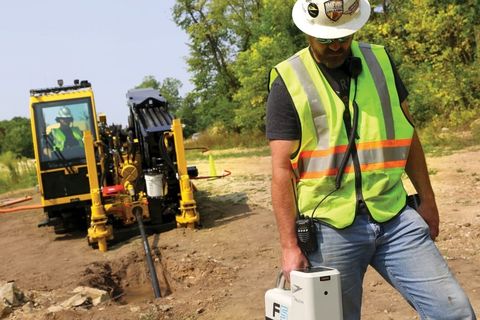

Operator running a horizontal directional drilling rig

04

Install & validate

Directional drilling keeps your lot open and your surface intact. Concrete, conduit, switchgear, dispensers — then commissioning and acceptance testing before handover.
NETWORK STATUS — LIVE 99.2% UPTIME 312 SESSIONS / DAY 9.4 MWH DISPENSED ILLUSTRATIVE PANEL — YOUR OCPP BACK END, YOUR DATA

05

Monitor & metrics

24/7 network insight through your OCPP back end. Uptime, session counts, energy dispensed, fault codes and the reporting any funding program will ask for.

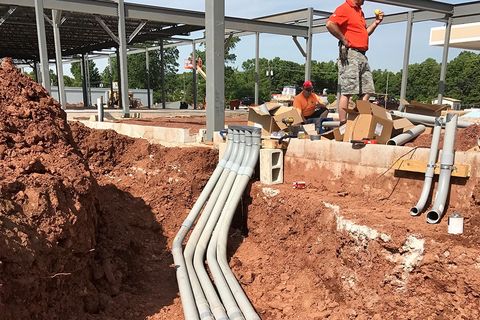

Conduit bundle laid in an open trench

06

Maintain & upgrade

Preventive maintenance, cable and dispenser replacement, and power-cabinet upgrades. When your site needs to go from 150 kW to 400 kW, the pathway is already in the ground.

Free tool

Can your site support fast charging?

Service size in, verdict out — with the arithmetic shown line by line. Two minutes, no signup.

Run the feasibility check

Capability

Self-perform, end to end.

HDD in-houseDirectional drilling crews on our payroll, not a sub's schedule
Self-perform electricalService, switchgear and dispenser terminations by our own electricians
Utility interfaceMake-ready and interconnection filings run by us, tracked weekly
Level 2 → megawattOne contractor across the whole power curve

OEM programs

Entering the North American market?

Vehicles arrive before infrastructure does. If you are launching a brand or electrifying a commercial line in the United States, the charging build is a construction problem long before it is a hardware problem — and it runs on utility timelines, not product timelines.

The OEM program
  • Delivery & dealer networks. Repeatable multi-site builds to one spec, market by market.
  • 1,000 V ready. Conductor, clearance and pad design that accepts megawatt-class cabinets without a second mobilization.
  • Dual-standard dispensing. NACS and CCS1 served from the same bay through the transition.
  • Utility interface. We run make-ready and interconnection — the item that actually sets your launch date.

Commonly asked

You've got questions.

How do I get power to my location?
It starts with what's already at your property line. We pull the utility's available capacity for your service address, locate the nearest transformer with headroom, and determine whether you need a service upgrade, a new service, or simply a different point of connection. From there we file the make-ready and interconnection applications on your behalf. This step sets your schedule more than any other — which is why we do it first, not third.
Can my current location support a fast charger?
Frequently yes at a lower power level than you expect, and yes at full power with a service upgrade. A 150 kW dual-port cabinet needs roughly 200 kW of service headroom; a 350 kW bay needs considerably more. Behind-the-meter storage can bridge the gap where the utility can't. Run the two-minute feasibility check for a first read, then the free survey answers it for your exact address.
How many chargers should I install?
Fewer than you think on day one, with the ground built for more than you think by year five. Dwell time, traffic pattern and vehicle mix drive the port count; the expensive part — service, switchgear, conduit and foundations — is what you don't want to build twice. We routinely install four ports on a pad and pathway engineered for twelve.
What does horizontal directional drilling change?
It means we can get power across a parking lot, driveway, landscaped area or active roadway without opening it. Less surface restoration, less downtime for your business, fewer permits in many jurisdictions, and a materially lower total cost on sites where the transformer is far from where the chargers need to go.
Do you build for heavy-duty and transit fleets?
Yes. Depot charging is a different discipline from public fast charging — sequenced charging across a whole yard, shift-pattern load profiles, and pathways staged for megawatt dispensers that may not be commercially available on the day we pour concrete. We design the civil and electrical infrastructure now so the upgrade later is a cabinet swap rather than a rebuild.

Next step

Tell us about the site.

Request a free site survey
